NextGIS Mobile 2.3: layer creation, tracks export, multipart-geometries

New version of NextGIS Mobile is out! NextGIS Mobile is our GIS app that allows you work with geodata on your smart devices. New version features layer creation, tracks export, support for multipart geometries and much more.

NGM can be used either separately or as part of the corporate GIS architecture, for example for data collection, control or assessment. At NextGIS we are using NGM as a platform for custom products development.

If you’re looking into using NGM for development or implementation of your corporate GIS, let us know and we will be happy to discuss options.

Support Try it!

Here we will discuss main features of the new release. Full list of changes can be found here.

Layer creation

One of the important improvements is the ability to create new layers right in the app. Just give it a name and define a set of attributes to fill.

Screenshot_2016-01-18-12-09-57

Dark/Light theme

You can now switch between light and dark visual theme. No need to reload the app.

Screenshot_2016-01-18-14-21-35 Screenshot_2016-01-18-15-43-26

Complex geometries editing

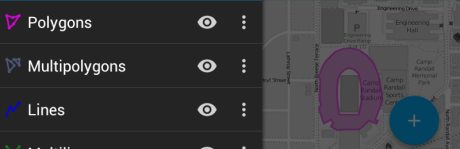

NextGIS Mobile can now work with multi-part geometries (multipolygons, multilines, multipoints), it can show, edit and export them. In addition, there are new editing tools to add rings and parts to create donut-like shapes.

Screenshot_2016-01-18-15-52-27 Screenshot_2016-01-18-15-49-54 Screenshot_2016-01-18-15-49-45

There is now a convenient way to replace current geometry with a new one without changing attributes. Simply start editing a feature and tap ‘Add’, current geometry will be replaced by default one which you can continue editing.

Tracks export

GPS can now be exported to GPX by sharing. You can share one or many tracks at once.

Photos

You can now attach photo or photos to a feature. On export or syncronization with remote server, those photos will be saved/synced together with the layer.

One-touch point creation

We already have tools to create points in the center of the screen or at current location. You can now also create them in any part of the screen by long tap. Situation when there are underlying objects is also considered. Our app will let you choose if you want to create a new point or start editing existing polygon.

ngm03-04

… and more:

  • Digitizing by walking now continues even if the screen is off.
  • Compass on the map or separately, can be turned off in Settings.
  • If you removed a layer by mistake, there is a chance to undo it now.
  • Layer icons now reflect geometry type and legend used to show them on the map.
  • You can now bring all app settings to defaults via Settings menu.
  • Support for  *.ngrc tile caches created with QTiles (more on in a separate post soon).

Support Try it!
